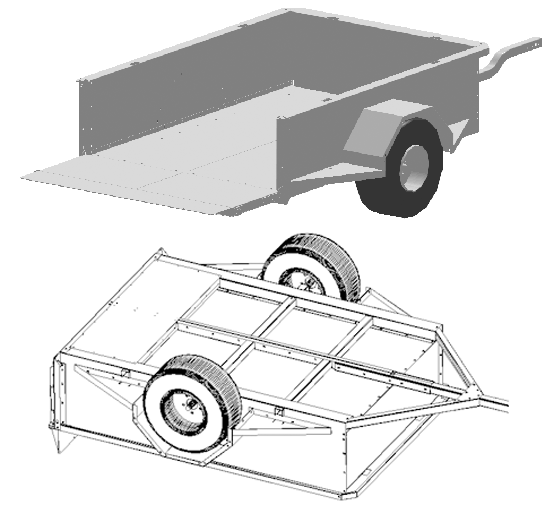

Turf Trailer

Patent Pending

Features :

bullet

Galvanized steel construction resists rust and corrosion which prolongs useful trailer life.  The axel, support tubes, and tongue are galvanized inside and out.

bullet

Bolt-together construction allows for easy replacement of damaged parts.

bullet

3-position tailgate can be put in the closed position for normal operation, in the middle position (as pictured above) for carrying long loads, or in the down position for use as a ramp to load and unload equipment.

bullet

Tree guards front and rear help safeguard fenders against collisions.

bullet

Galvanized rear skid panel helps to prevent turf damage caused by skidding.

bullet

Balanced design for easy coupling.

bullet

Straight or offset tongues available.

bullet

Choice of hitch: 1 7/8", 2", or pin coupler.

bullet

Side rail pockets allow for the addition of optional accessories.

Specifications:

Maximum Payload
(Tire pressure 50 psi at < 20 MPH)
2500 Lbs.
Note: Do not exceed tow vehicle's maximum weight limits.
Payload Area
(Tailgate Closed)
24 Square Feet  (4' X 6')
Empty Weight: 450 Lbs.
Tires 20.5 X 8.0 - Load Range C. DOT approved
Axels and Hubs 5 bolt lug style, rated load 1750 Lbs ea.
Total load rating 3500 Lbs.
Inside Dimensions 48.625 X 71.25 inches  ( Tailgate closed )
48.625 X 95.25 inches  ( Tailgate open)
Outside Dimensions 68 X 133 inches  ( Tailgate closed )
68 X 157 inches  ( Tailgate open)



Warning!

bullet

Do not exceed tow vehicle's maximum weight limits.

bullet

Braking will be impeded when towing trailer.

bullet

When loading trailer insure that most of the weight is forward of the axle, giving the tongue a positive weight.

bullet

Secure load to avoid weight shifting.

bullet

Trailer may slide or become unstable on slopes.

bullet

Do not transport people on trailer.

bullet

Do not step or walk in trailer.  Smooth metal is slippery especially when wet.

bullet

Not for highway use.
